Talk: Baby's first HTML5 <video> element

At Demuxed 2022, I gave a talk about rebuilding the HTML5 <video> element from scratch, handling buffering, decoding and rendering myself with Custom Elements and WebCodecs. Watch the talk below, or read on to find out why (and how) I built this crazy contraption.

Transcript

(pointing at title slide) As you can see, I also have a passion for graphic design.

So hi Demuxed, I’m Mattias. I work at THEO, we make online video players. But today we’re going to be making something slightly different: we’re going to be building an HTML5 video element from scratch.

The video element is what you see every time you play a video in a web browser, and it’s what powers every JavaScript player out there like hls.js, Shaka, THEOplayer. If you’re watching this talk online, you’re probably looking at a video element right now. Now, Carl Sagan famously said if you wish to make a video element from scratch you must first invent the universe. I only have about 10 minutes today so I won’t exactly go that far, but we’ll still try to make it work.

So why would you want to do this when we already have a perfectly good built-in video element? Well, the video element makes a lot of decisions for us: when to decode the next frame, how many frames to decode in advance,… For some use cases like low-latency streaming that might not be enough. We want to take control of the decoding on a much lower level there, to fine tune things even further.

Also, because today we can actually do this efficiently: we’ve got the WebCodecs API in Chrome that allows you to interface directly with the hardware decoder. And their explainer even mentions that you should be able to build something like MSE on top of it. So to that I say: challenge accepted! Let’s put the theory into practice.

And we can try to make this into a running theme here at Demuxed: last year Collin Miller replaced ffmpeg with WebCodecs, today I’ll replace the video element with WebCodecs, so maybe next year someone can - I don’t know - replace smell-o-vision with WebCodecs? Submit a talk, I would love to see that.

Finally, this is a fun learning exercise. Some of the things that we take for granted from a video element are actually quite tricky when you actually try to make this yourself, so it should be interesting to do. Do note though: this is a toy implementation and like if you have your kids playing with a toy kitchen, you wouldn’t really want to eat whatever they cook up in there either. So don’t do that.

First things first: let’s put the “element” in “video element”. We’ve got custom elements for that today, so we can just define our <baby-video> element in JavaScript, put it on our page, put a <canvas> element in there so that we have somewhere to draw our video frames on and that should work. There we go: we’ve got a black rectangle. Yay!

…Not too excited just yet, a very convoluted way to get a black rectangle on your screen so let’s put something extra in there. We can control a video element entirely from JavaScript but it’s probably easier if we have like a UI with a play button and a seek bar in there to do things with. You can build that in HTML, JavaScript and CSS yourself but if it looks like a video element and it quacks like a video element,… then you can use Media Chrome for your UI.

So this is the boilerplate for Media Chrome: you add Media Chrome to your web page, you wrap your video element in a <media-controller>, you put some UI components in there and there you have it: a working UI. Wow! It doesn’t really do anything yet because we haven’t implemented anything in our video element itself, so let’s keep going.

We want to first put some data in our video element. The API for that is called Media Source Extensions. That again powers every JavaScript player out there and the logic is always the same: you create a MediaSource with one or more SourceBuffers, you download some fragmented MP4 files that you got out of an HLS or a DASH or an HESP manifest, and then you append those to your SourceBuffer and that gets you data for your video.

Of course, we’re implementing this ourselves today so the most important method is appendBuffer. We’ll use mp4box.js to parse the incoming fragmented MP4 files. The initialization segment contains the movie box that contains track and codec information and we’ll represent those as a VideoDecoderConfig. The media segments then contain our movie fragment boxes with media sample data and we’ll represent those as EncodedVideoChunks later to play with WebCodecs.

So, we’ve got some buffer, we can finally play a video. We’ll have a simple clock that advances with the player’s current time and every time the browser wants to render a frame, we’ll configure the video decoder. If we haven’t done that already, we’ll find the correct frame in our buffer that was populated from the media segment, then we’ll decode that frame and then render it. The rendering is actually quite easy with WebCodecs because you can just pass the video frame directly to drawImage and that just works. Really cool!

So of course you gotta play Big Buck Bunny in our first video element. Yes, there it is! If you’re watching this talk online and it’s looking a bit glitchy on your side, that’s supposed to happen: we’re not there yet. The PTS and the frame numbers are all wrong and there’s lots of smearing going on, so let’s try to fix that.

What is actually going on in this demo? Well, the browser is rendering this at like 60 frames per second, but our video is 30 frames per second. So we’re actually decoding every frame twice. That’s not supposed to happen, because a frame depends on the previous frame, not on itself. So to fix that, we just add an extra check: if we’ve already decoded this frame, we don’t decode it again and we just move on.

So what does that look like? Okay, yeah, that does look more like Big Buck Bunny to me. Okay, if it still looks glitchy on your end online: sorry, that’s on you, check your connection.

So what about seeking? What if we jump forward and backward in time? The logic should still work, right? We’ve got all of that stuff going on: we’re finding the frame at current time… no, oh okay, that is really blocky and janky.

That’s not how you remember it, so what’s going on this time? Well, there’s two types of video frames: we’ve got keyframes and delta frames, and if we end up on a delta frame after a seek, then we cannot decode that independently, we need to decode all of its frame dependencies first. Usually that just means decoding from the last decoded sample that we’ve got in our buffer, or if we’re now in a new group of pictures with a new keyframe, we have to start decoding from that keyframe.

Note that this also handles a case that we didn’t handle earlier, that we missed: when the display frame rate is smaller than the video frame rate, then we always need to decode multiple frames for every rendered frame, so this handles that too. Note that if you have fewer keyframes in your video, you’ll have more frame dependencies, and that means that seeking can become slower. So takeaway from that: one of the reasons why you should keep your keyframe interval small is to keep seeking relatively fast.

We’ve got seeking working now, I think. Yep, that’s the right frame, that doesn’t look janky.

Okay good, so we’re onto something good here. Now, to make this a proper video player: if we only ever append new media data, then sooner or later this is just gonna crash with an out-of-memory error. We don’t want that, so the player needs a way to remove the media when it’s no longer needed. The API for that is called SourceBuffer.remove() and it removes everything between a given start and end time. Now, if there are frames that depend on those frames in that interval, you can no longer decode those after you’ve removed them, so those also get removed with that same call. In particular, if there’s a keyframe in that removal range, then you remove the entire group of pictures that comes with it.

Now, when should the player clean up its buffer? It can do it proactively: you can remove frames that are too far in the past, because you no longer need them when you’re doing forward playback. Again, you have to watch out that if you’re too close to current time, you don’t want to remove the keyframe that is being used to decode frames around current time, otherwise you can stall the decoder or cause glitches, you don’t want that. When you’re seeking backwards you can also remove frames that are now too far ahead of current time. But sometimes that’s not enough: sometimes the source buffer might reach its limit earlier than that, and you have to react to that. It will throw a QuotaExceededError at you, so your player should be able to handle that: reduce its buffering goal and then keep less buffer after current time. It should also postpone the next appends until it can actually remove some data that it no longer needs, and then retry the appends again.

Now with this we can already play pretty simple streams, but of course for a proper video player we also want something like ABR, so we want to be able to switch qualities. A quality switch usually means a new codec config, so we just reconfigure our existing decoder with the new config, and that’s most of the time good enough. However, for some streams you have a problem if you have different qualities with different segment durations. So in this example first we have two segments in the 480p quality, and then we try a quality switch to the 720p quality, but that overlaps the second segment that we already have. That means that the second segment gets cut off a bit, and that might be fine, but if you’re already playing in that second segment, you might again stall or glitch the decoder. So in general you want your player to avoid that: you want your player to only try a quality switch a bit further from current time. But in some cases even that is not possible: if you’ve really depleted your buffer and you have to do a downswitch, you don’t really have any other choice as to switch at current time. So even better if you can author your stream to align segment boundaries across qualities and you can avoid this problem entirely.

So there we have it: we’ve built our own video element with most of the video API in place, we can play streaming video. You can try this out yourself in Chrome today, link is on the screen, and this uses WebCodecs so you need a modern version of Chrome for this. We learned on the way that decoding is quite tricky to get right and that the video player needs to be very careful when it’s cleaning its buffer and switching qualities. WebCodecs is also a pretty neat API, like this is the first project I used it in and it works quite well for its use case. I hope it catches on in other browsers too, so we can do more cool stuff with this.

A couple of links if you can’t get enough of WebCodecs like me…

And that’ll be all from me, thank you!

Motivation

For videos on the web, everything starts with the HTML <video> element:

<video controls src="https://example.com/video.mp4"></video>

This gives you a basic but fully functional player right inside your website or web app, like so:

This is fine for short, simple videos. However, when video is a core part of your website’s experience, you’ll want more advanced features, such as:

Serving the same video in multiple qualities, and having the player automatically select the best quality based on the user’s device capabilities and internet connection.
Serving live content such as a sports broadcast, a 24/7 news channel, or a gaming livestream.

These features are generally not natively supported by the <video> element. That’s where the Media Source Extensions (“MSE”) API comes in. It allows JavaScript code to load the media content (usually by fetch()ing it from your server), and then append it in small “chunks” to the <video> element’s buffer. This API forms the backbone of all major web-based streaming video players, such as hls.js, dash.js, Shaka Player and THEOplayer.

However, even the MSE API has its limitations:

MSE lets you control how your media is buffered, but not how it is played.
- There’s no way to control when the <video> element should start playing. Most browsers will initiate playback after a couple of audio and video frames have been buffered and decoded, but the precise thresholds vary between browsers, leading to different startup times.
- For live streams, it’s sometimes better to skip a couple of bad or missing frames instead of stalling the player. However, a JavaScript player can’t easily detect or control that. Instead, it must handle this after the fact, by trying to recover after the <video> element starts stalling.
MSE requires media samples to be carried inside a container format, such as fragmented MP4 (CMAF) or WebM.
- When the source media uses a different format (e.g. MPEG-TS), the JavaScript player must first extract the media samples from their original container (“demux”) and then put them back into a new container (“mux” or “remux”). This second step is pure overhead, since MSE will immediately extract those samples out of the new container again.

That’s why I wanted to experiment with a video player that takes full control over both buffering and playing the media, without using a <video> element or MSE. First of all, I wanted to better understand what the browser’s <video> element does, by trying to replicate it myself in JavaScript. I also wanted to see what kind of choices you can make in the lower levels of a video player, choices that you usually don’t get to make. And of course, any new experiment is a great excuse to try out some fancy new web APIs. 😄

Put the “element” in “video element”

Before we can decode a single frame, we need something to render it into. The <video> element is first and foremost an HTML element: it has attributes, it fires events, it can be styled with CSS, and it fits into the page like any other element. If our replacement is to be a believable stand-in, it should behave the same way.

Luckily, the web platform has had Custom Elements for a while now. These let you define your own HTML elements, backed by a JavaScript class. So the first step is about as simple as it gets:

class BabyVideoElement extends HTMLElement {
  #canvas
  #canvasContext

  constructor() {
    super()
    const shadowRoot = this.attachShadow({ mode: 'open' })
    this.#canvas = document.createElement('canvas')
    this.#canvas.width = 300
    this.#canvas.height = 150
    shadowRoot.appendChild(this.#canvas)

    this.#canvasContext = this.#canvas.getContext('2d')
    this.#canvasContext.fillStyle = 'black'
    this.#canvasContext.fillRect(0, 0, this.#canvas.width, this.#canvas.height)
  }
}
customElements.define('baby-video', BabyVideoElement)

We use a <canvas>, since that’s the closest thing the platform has to “a rectangle I can paint pixels into myself”. We put it inside a shadow root to keep it out of the page’s DOM, just like the real <video> element does with its internals. We fill it with black, and… that’s it. <baby-video> doesn’t do anything useful yet, but you can already put it on a page and get a black rectangle. The first baby steps of our <baby-video> element!

A video element without any controls isn’t very useful, though. We could build a play button and a seek bar ourselves with HTML, CSS and JavaScript, but there’s no need: Media Chrome provides a whole set of accessible, customizable UI components. If our <baby-video> looks like a <video> element and quacks like a <video> element, then Media Chrome will treat it like a <video> element. So we get a working play/pause button and seek bar for free, by wrapping our element in a <media-controller> and adding the components we want:

<media-controller>
  <baby-video slot="media"></baby-video>
  <media-control-bar>
    <media-play-button></media-play-button>
    <media-time-display show-duration></media-time-display>
    <media-time-range></media-time-range>
    <media-fullscreen-button></media-fullscreen-button>
  </media-control-bar>
</media-controller>

<script type="module" src="https://unpkg.com/media-chrome@0.12.0"></script>
<script src="./baby-video.js"></script>

Of course, none of these buttons do anything yet, because <baby-video> doesn’t have any video to show, let alone the ability to decode and play it.

WebCodecs to the rescue

So how do we turn video data into pixels on our <canvas>? Until a few years ago, that was (nearly) impossible without a <video> element, although there were some exceptions.

For example, VLC.js is a port of VLC media player compiled to WebAssembly, which renders to <canvas> (for video) and Web Audio (for audio). It’s an amazing project that shows off the versatility of their code. However, since everything is done in software, VLC.js can’t take advantage of the hardware-accelerated decoders that most CPUs and GPUs have. Hardware decoding is essential for smooth and battery-efficient playback on all devices, which is why VLC.js is still more of an experiment than a production-ready streaming solution. ¹

Fortunately, we now have the WebCodecs API, which allows JavaScript to talk directly to audio and video decoders. This means you can build a JavaScript player with full control over exactly when each audio and video frame is decoded, when it’s rendered, and what to do when frames are broken or missing.

Importantly, these are the same decoders that the browser uses for its own video playback, so they can be hardware-accelerated! This is a game changer: for the first time, we can use these decoders directly from JavaScript, without going through a <video> element.

With that freedom comes a lot of responsibility. It’s now up to the JavaScript player to ensure smooth playback, and to deal with mishaps such as corrupted frames, or frames that arrive too late or never arrive at all.

Replacing parts of the video pipeline with WebCodecs was becoming a running theme at Demuxed. The year before, Collin Miller replaced FFmpeg with WebCodecs. This time, it’s the <video> element’s turn.

Feeding it data

WebCodecs gives us decoders, but we still need to get video data into our element. For a real <video> element, that’s what MSE is for. So just like we did for the <video> element itself, we’ll build our own version of the MSE API: a BabyMediaSource with its own SourceBuffer.

const mediaSource = new BabyMediaSource()
video.srcObject = mediaSource
await waitForEvent(mediaSource, 'sourceopen')
mediaSource.duration = 30
const sourceBuffer = mediaSource.addSourceBuffer('video/mp4; codecs="avc1.640028"')

const segmentUrls = ['video_init.mp4', 'video_1.mp4', 'video_2.mp4']
for (const segmentUrl of segmentUrls) {
  const segmentData = await (await fetch(segmentUrl)).arrayBuffer()
  sourceBuffer.appendBuffer(segmentData)
  await waitForEvent(sourceBuffer, 'updateend')
}

The video data usually comes as fragmented MP4 (or CMAF), the same chunks that hls.js, dash.js and other players download for an HLS or DASH stream. Rather than writing an MP4 parser from scratch, I used mp4box.js, a battle-tested JavaScript library that parses MP4’s box structure.

A fragmented MP4 stream generally consists of two kinds of segments:

An initialization segment, containing a moov box with track and codec information. We parse this once, and turn it into a VideoDecoderConfig that we can use to configure a WebCodecs VideoDecoder.
One or more media segments, each containing a moof/mdat pair with the encoded samples. We turn each sample into an EncodedVideoChunk (WebCodecs’ name for a single encoded frame), and store them in our SourceBuffer, sorted by timestamp.

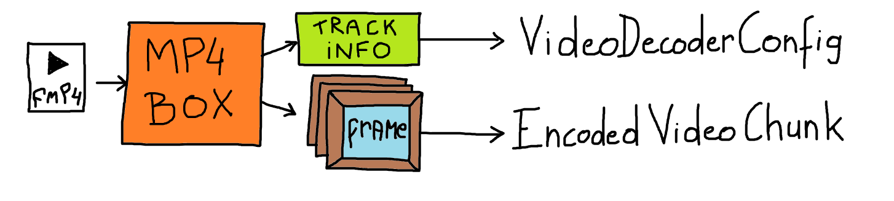

Diagram of mp4box.js parsing a fragmented MP4 file into track info and encoded frames. — mp4box.js turns an fMP4 file into track info (for the `VideoDecoderConfig`) and a series of frames (for the `EncodedVideoChunk`s).

With mp4box.js doing the parsing, our SourceBuffer.appendBuffer() can turn incoming MP4 segments into a growing list of EncodedVideoChunks. Next up: decoding those chunks into frames, and drawing those frames on the screen.

Decoding and rendering a frame

With a buffer full of EncodedVideoChunks, we finally get to the point of this whole exercise: turning those chunks into pixels on the screen.

WebCodecs’ VideoDecoder is refreshingly simple to use. You configure it with the VideoDecoderConfig from the initialization segment, and then feed it EncodedVideoChunks one by one. For every chunk, the decoder eventually gives you a VideoFrame through its output callback:

class BabyVideoElement extends HTMLElement {
  #videoDecoder

  constructor() {
    // ...
    this.#videoDecoder = new VideoDecoder({
      output: (frame) => this.#onVideoFrameDecoded(frame),
      error: (error) => console.error(error)
    })
  }

  #onAnimationFrame() {
    const videoTrackBuffer = getActiveVideoTrackBuffer(this.#mediaSource)
    if (this.#videoDecoder.state === 'unconfigured') {
      this.#videoDecoder.configure(videoTrackBuffer.codecConfig)
    }
    const frame = videoTrackBuffer.findFrameForTime(this.currentTime)
    if (frame) {
      this.#videoDecoder.decode(frame)
    }
  }

  #onVideoFrameDecoded(frame) {
    this.#canvasContext.drawImage(frame, 0, 0, frame.displayWidth, frame.displayHeight)
    frame.close()
  }
}

#onAnimationFrame() is our clock. It runs once for every frame that the browser renders, looks up the EncodedVideoChunk for the current time, and passes it to the decoder.

Rendering the resulting VideoFrame was the easiest part of the whole project. CanvasRenderingContext2D.drawImage() accepts a VideoFrame directly, just like an <img>, a <video> or an ImageBitmap. So when a frame comes out of the decoder, #onVideoFrameDecoded() draws it onto the <canvas> and then closes it.

Put the clock, the decoder and drawImage() together, and <baby-video> can already play a video from start to end. When I tried it with Big Buck Bunny, it mostly worked, except that the picture was smearing and stuttering. Getting frames on the screen was the easy part. The hard part was yet to come.

The double-decode bug

The smearing had a simple cause: I had been treating two different frame rates as if they were the same.

The browser calls our render loop once per display refresh, typically 60 times per second. However, my Big Buck Bunny test video was encoded at 30 frames per second. The render loop grabbed “the chunk for the current time” on every call, so for about half of those calls, it passed the same EncodedVideoChunk to the decoder a second time.

That would be harmless if every frame could be decoded on its own, but that’s not the case in a compressed video. To save space, video codecs encode most frames as a delta against the frame(s) before them, rather than as a full image. Instead of pixel colors, a delta frame mostly describes which “macroblocks” (blocks of pixels) of the previous frame to keep in place or move to a different position, plus a small residual to correct whatever the motion didn’t capture. The decoder keeps the reconstructed frame in its internal state, to use as the reference for the next delta frame.

If you decode the same delta chunk twice, the decoder doesn’t show the same picture again. It applies the same motion and residual a second time, on top of a frame that was already shifted once. That corrupts the decoder’s state, and after dozens of frames, you get the smearing I was seeing.

The fix is simple: remember which chunk was decoded last, and skip it if the render loop asks for that same chunk again.

#onAnimationFrame() {
  // ...
  const frame = videoTrackBuffer.findFrameForTime(this.currentTime);
  if (frame === this.#lastDecodedFrame) {
    return;
  }
  this.#videoDecoder.decode(frame);
  this.#lastDecodedFrame = frame;
}

With that check in place, Big Buck Bunny finally played as the Blender Foundation intended.

Seeking should just work, right?

Playback was looking good, so surely seeking (jumping forward or backward in the video) would just work too? After all, #onAnimationFrame() already looks up the chunk for currentTime on every frame, and the seek bar simply changes currentTime. I dragged the seek bar back to the start, expecting to see the opening shot of Big Buck Bunny again.

Instead: a blocky, garbled mess. Again. 🙄

Once again, the problem comes down to how compressed video works. As we saw earlier, most frames are delta frames that only make sense relative to the frames before them. After a seek, decoding only the delta frame we landed on is just as broken as decoding a frame twice: the decoder doesn’t have the reference frame that the delta frame expects.

To decode a frame after a seek, we first need to decode every frame it (indirectly) depends on:

If the seek landed further ahead in the group of pictures (“GOP”) we were already decoding, we can continue where we left off, and decode everything between the last decoded chunk and the new one.
Otherwise, there’s no state to continue from. We have to start over from the keyframe at the start of the target GOP, and decode our way forward to the target chunk.

Either way, we send every chunk along the way to the VideoDecoder, but we only draw the last one onto the <canvas>. So we generalize our earlier fix: instead of skipping duplicate chunks, we skip every chunk except the one we want to render. The logic for walking back to a keyframe goes into getDecodeDependenciesForFrame():

#onAnimationFrame() {
  const videoTrackBuffer = getActiveVideoTrackBuffer(this.#mediaSource);
  const targetFrame = videoTrackBuffer.findFrameForTime(this.currentTime);
  if (!targetFrame || targetFrame === this.#lastDecodedFrame) {
    return;
  }
  const decodeQueue = videoTrackBuffer.getDecodeDependenciesForFrame(targetFrame, this.#lastDecodedFrame);
  if (this.#videoDecoder.state === "unconfigured") {
    this.#videoDecoder.configure(decodeQueue.codecConfig);
  }
  for (const frame of decodeQueue.frames) {
    this.#videoDecoder.decode(frame);
  }
  this.#lastDecodedFrame = targetFrame;
}

As a nice bonus, this also fixes a case we had been ignoring so far. What happens when the display frame rate is lower than the video frame rate, so that more than one video frame falls between two animation frames? That’s the same problem as seeking, just over a much shorter distance, so the same code fixes it.

With that in place, seeking finally showed the opening shot of Big Buck Bunny. The glitchy mess was gone.

This does come at a cost, though. The further a delta frame is from its keyframe, the more frames we have to decode after a seek before we can show anything. Fewer keyframes means slower seeking. That’s one of the reasons why HLS and DASH streams typically have a keyframe every two seconds or so: it’s a trade-off between compression efficiency (keyframes are expensive) and how fast seeking (and switching qualities) feels to the viewer.

Managing the buffer

So far, <baby-video>’s buffer only ever grows: every appended segment adds more EncodedVideoChunks that stay around forever. That’s fine for a 30-second demo clip, but with a two-hour movie or a 24/7 livestream, it’s only a matter of time before the tab runs out of memory and crashes. A real player also needs to remove media that it no longer needs.

MSE’s SourceBuffer has a method for this: SourceBuffer.remove(start, end), which removes every frame with a presentation time between start and end. Once again, delta frames make this tricky. If we remove a frame that other frames depend on, those frames can no longer be decoded, so they must be removed as well. In practice, this means removing entire GOPs: if you remove a keyframe, every delta frame that depends on it (up to the next keyframe) must go too.

class BabySourceBuffer extends EventTarget {
  remove(start, end) {
    // Removing a keyframe takes its whole GOP down with it,
    // so round the removal range out to GOP boundaries first.
    const { start: gopStart, end: gopEnd } = this.#alignToGroupOfPictures(start, end)
    this.#chunks = this.#chunks.filter(
      (chunk) => chunk.timestamp < gopStart || chunk.timestamp >= gopEnd
    )
  }
}

That leaves the question of when to call remove(). There are two options:

Proactively, before appending new data. While playing forward, chunks that are well behind currentTime probably won’t be needed again, so we can remove them to make room. We shouldn’t be too eager, though: if we remove the keyframe that the current GOP depends on, we’d break our own decoder. A safe rule of thumb is to never remove anything within one keyframe interval of currentTime. After seeking backwards, the same applies in the other direction: chunks that are far ahead of currentTime can be removed too.
Reactively, when the buffer is full. No matter how proactive we are, SourceBuffer.appendBuffer() can still throw a QuotaExceededError if there isn’t enough room for the new data. When that happens, the player should lower its buffering goal (how far ahead it tries to buffer), remove whatever it safely can, and try the append again later, once playback has advanced far enough to free up more room.

With both proactive and reactive eviction in place, <baby-video> can keep buffering indefinitely without eating up all of the tab’s memory. Old chunks make way for new ones, and when the buffer is full, the player can recover gracefully instead of giving up.

Switching between qualities

A player that only plays a single, fixed quality isn’t very useful on a real network. Either it picks a safe but blurry quality, or a sharp one that stalls as soon as your connection slows down. Real streaming players constantly decide which quality to buffer next, based on bandwidth, device capabilities, and how full the buffer is. <baby-video> doesn’t make that decision itself, but it does need to handle the result: a stream of segments that can switch from, say, 480p to 720p from one segment to the next.

The decoder is the easy part. Each quality has its own VideoDecoderConfig, so switching quality means reconfiguring the VideoDecoder before decoding the first frame of the new quality. getDecodeDependenciesForFrame() already returns the codecConfig for the GOP of the target frame, so #onAnimationFrame() barely needs to change. Instead of only configuring the decoder when it’s "unconfigured", it also reconfigures it whenever the codec config changes:

#onAnimationFrame() {
  // ...
  const decodeQueue = videoTrackBuffer.getDecodeDependenciesForFrame(targetFrame, this.#lastDecodedFrame);
  if (this.#videoDecoder.state === "unconfigured" || this.#lastVideoDecoderConfig !== decodeQueue.codecConfig) {
    this.#videoDecoder.configure(decodeQueue.codecConfig);
    this.#lastVideoDecoderConfig = decodeQueue.codecConfig;
  }
  // ...
}

The harder part is what happens in the buffer. Different qualities of the same video don’t always split their segments at the same timestamps: one quality might have 4-second segments, while another has 6-second segments. So when the player switches quality, the new segment can overlap with a segment of the old quality that’s already in the buffer.

Suppose we’ve buffered two 480p segments, and then switch to 720p starting from segment #3. That 720p segment overlaps with the end of our second 480p segment. According to MSE’s coded frame processing algorithm, the overlapping old frames are removed to make room for the new ones: the second 480p segment gets cut short, and the 720p segment takes over from there. If playback hasn’t reached that point yet, nobody notices. But if currentTime is already inside that second segment, we’ve pulled the rug out from under the decoder in the middle of a GOP. That can cause the same kind of stalls or glitches we saw with the double-decode bug and with seeking.

Diagram of a quality switch from 480p to 720p, showing the buffer's last 480p segment getting cut short because the segment durations don't line up. — Switching from 480p to 720p when segment durations don’t line up: the last buffered 480p segment gets cut short to make room for the new 720p segment.

So just like with buffer eviction, the player should avoid switching quality too close to currentTime, and leave a safety margin before the switch reaches the decoder. That’s not always possible, though. If the buffer is nearly empty because the network can’t keep up, switching down to a lower quality right away (overlap and all) may be the only way to avoid a stall.

The cleanest fix isn’t in the player at all. If the encoder aligns segment boundaries across all qualities, so that segment #3 always starts at the same timestamp in every quality, there’s never any overlap to begin with, and switching quality is as simple as reconfiguring the decoder.

Conclusion

So there we have it: a <baby-video> element, built from a <canvas>, a custom MediaSource and SourceBuffer, and WebCodecs, that covers most of what the real <video> element does. It plays, pauses, seeks, buffers, removes what it no longer needs, and switches quality mid-stream. You can try it yourself in any browser that supports WebCodecs, and the full source code is on GitHub if you want to poke around.

The biggest lesson for me was how much complexity hides behind “decode the next frame”. Almost every problem in this project, from the first render loop to the last quality switch, came down to the same thing: compressed video isn’t a sequence of pictures, but a sequence of instructions for reconstructing pictures, and most of those instructions only make sense after the ones that came before. The <video> element hides all of that from you. Only when you try to rebuild it yourself do you notice how much bookkeeping is going on underneath.

The other lesson: a video player’s job isn’t just decoding. It also has to decide what not to decode and what to throw away. Skipping duplicate chunks, going back to a keyframe after a seek, removing old GOPs before the buffer fills up, not switching quality too close to currentTime: you don’t think about any of that when you only consider the happy path, but all of it matters.

Finally, WebCodecs held up well. This was my first real project with it, and even though it was still a fairly young and low-level API, it did everything I asked of it, including using the browser’s hardware-accelerated decoders. At the time of the talk, it only worked in Chromium-based browsers, so experiments like this one were mostly Chrome-only party tricks. Since then, Safari and Firefox have caught up, so you can now try <baby-video> in Chrome, Safari and Firefox.
